Career Tech High School

01 — The material

Glass does not negotiate

Steel forgives. If a post is out by a sixteenth you persuade it. Glass does not bend to meet a frame that is wrong — it either drops into the shoe or it does not, and the panel that does not fit is not adjusted, it is replaced.

Every panel here was a custom buyout, made by a glass manufacturer to our drawings. That is worth being plain about: the dimensions were ours. Nobody else in the chain was going to catch a panel size that was wrong, and a tempered laminated panel is weeks out, not days.

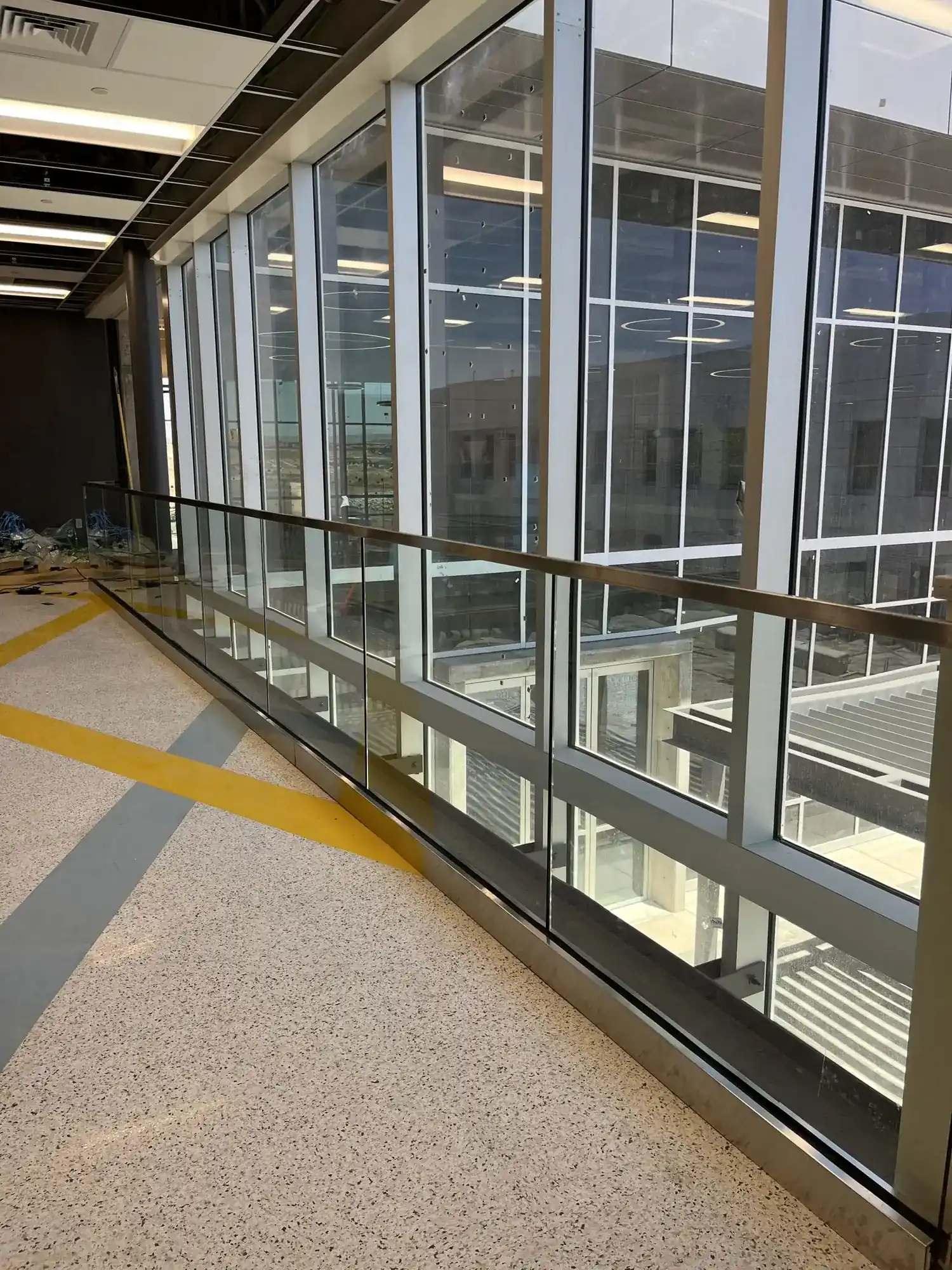

So the tolerance lives in the metal. An aluminum base shoe clad in stainless runs the length of every run, set and shimmed to the substrate before any glass arrives, because the shoe is the only part of the assembly that can be corrected on site.

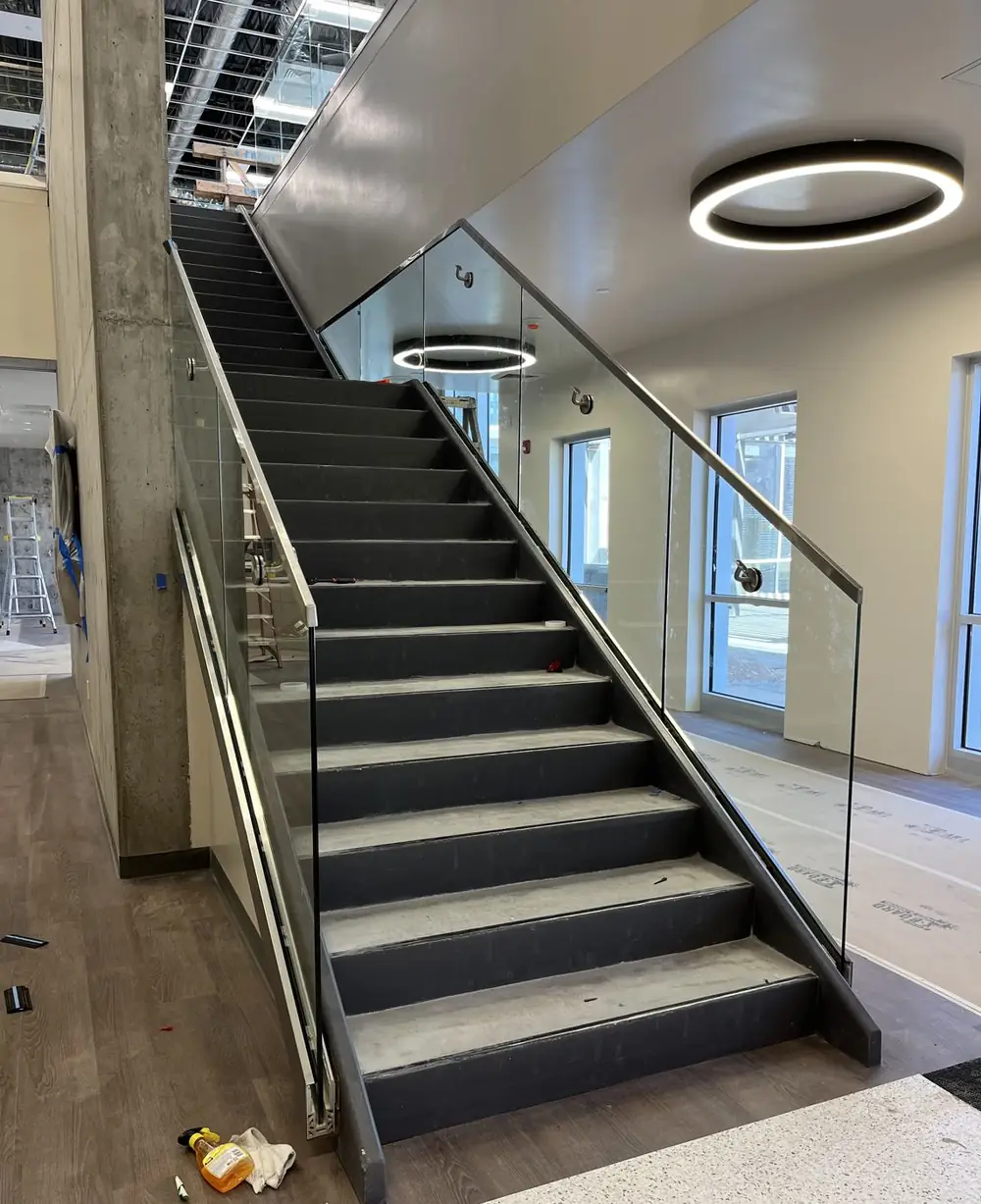

The cap is 304 stainless in a #4 brushed satin finish, and the grain has to run continuously along hundreds of feet of rail that was fabricated in sections. A finish mismatch at a splice is visible from across a commons.

03 — The scale of it

450 feet of a material we had never run this much of

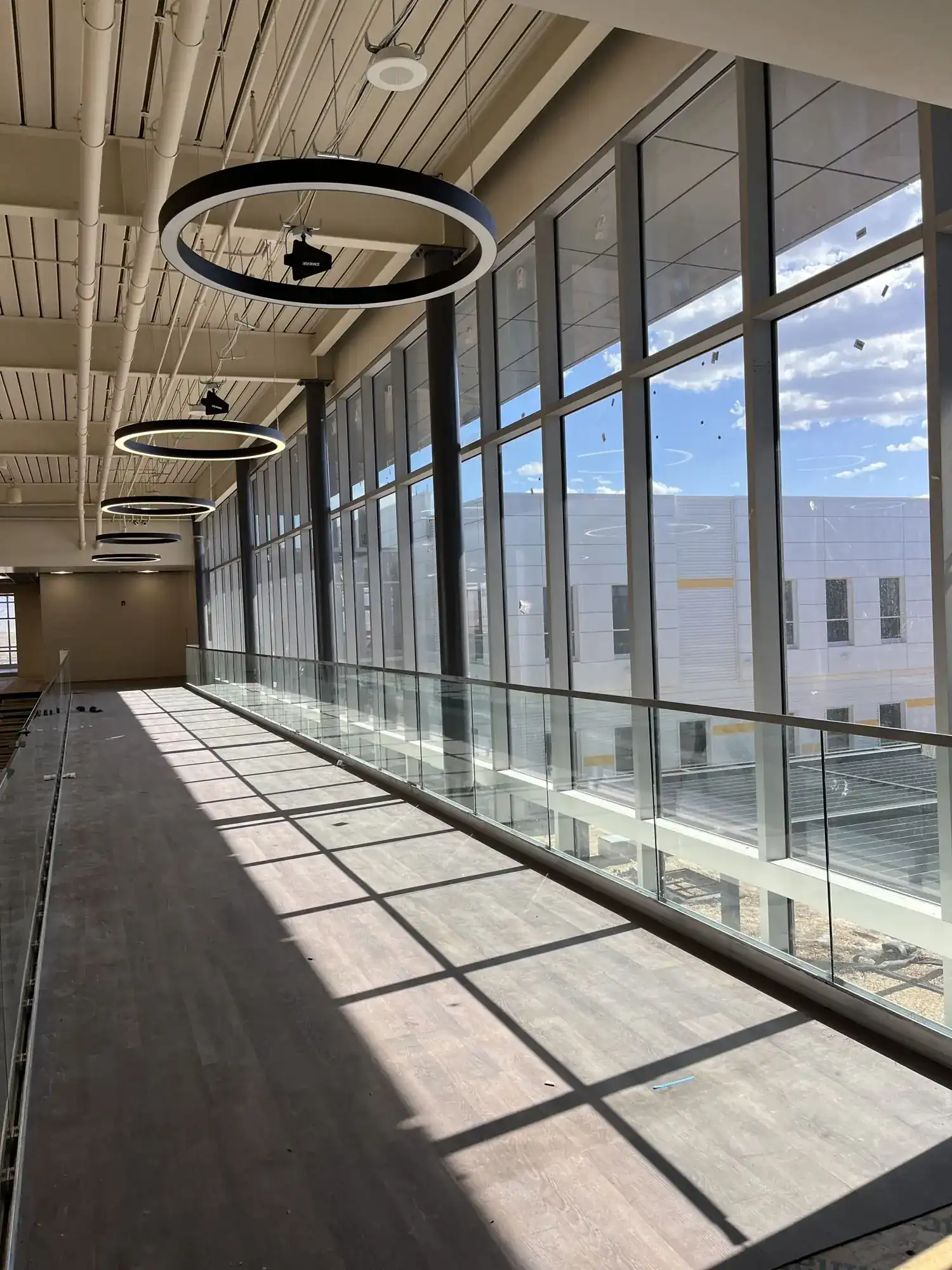

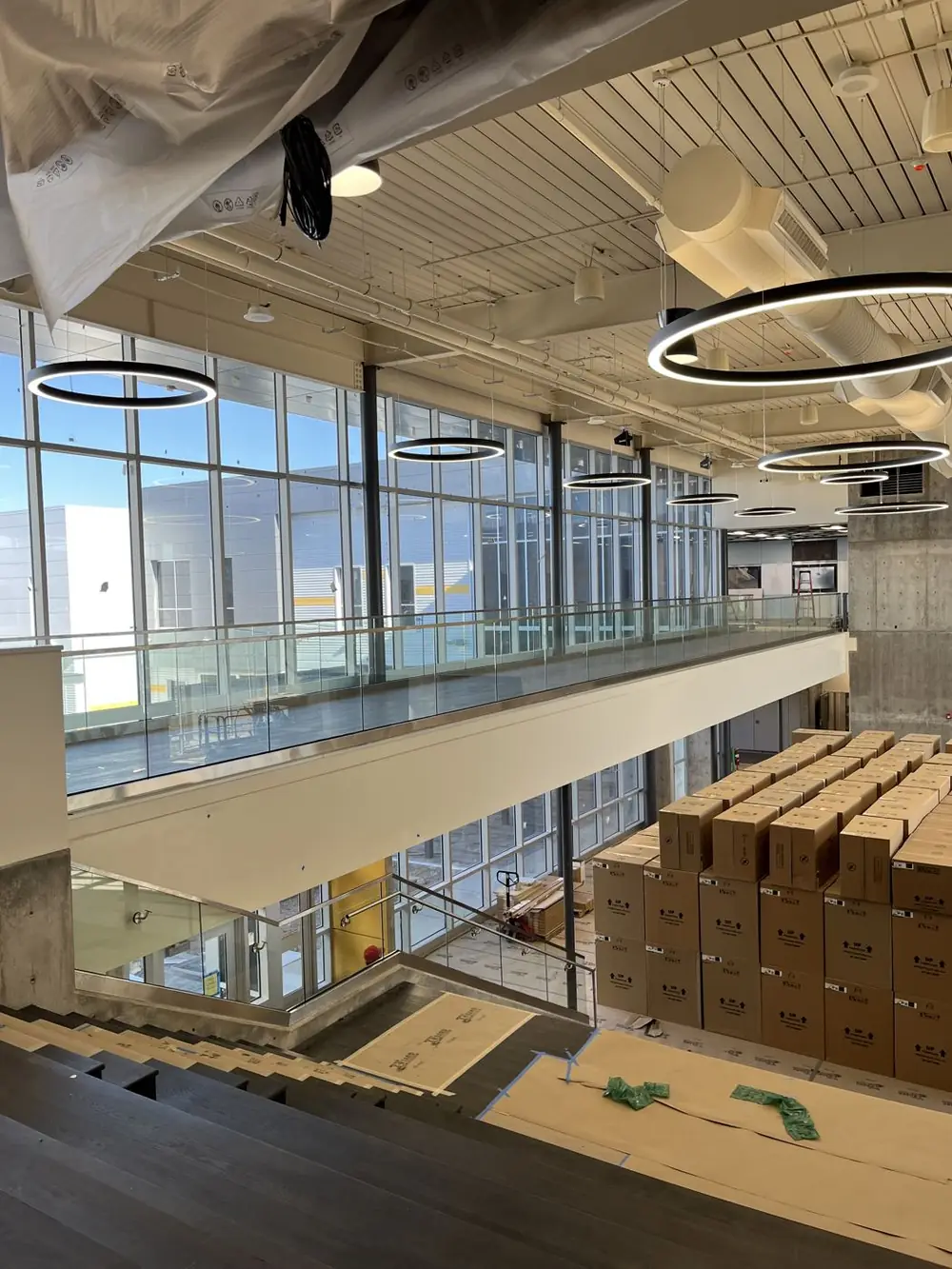

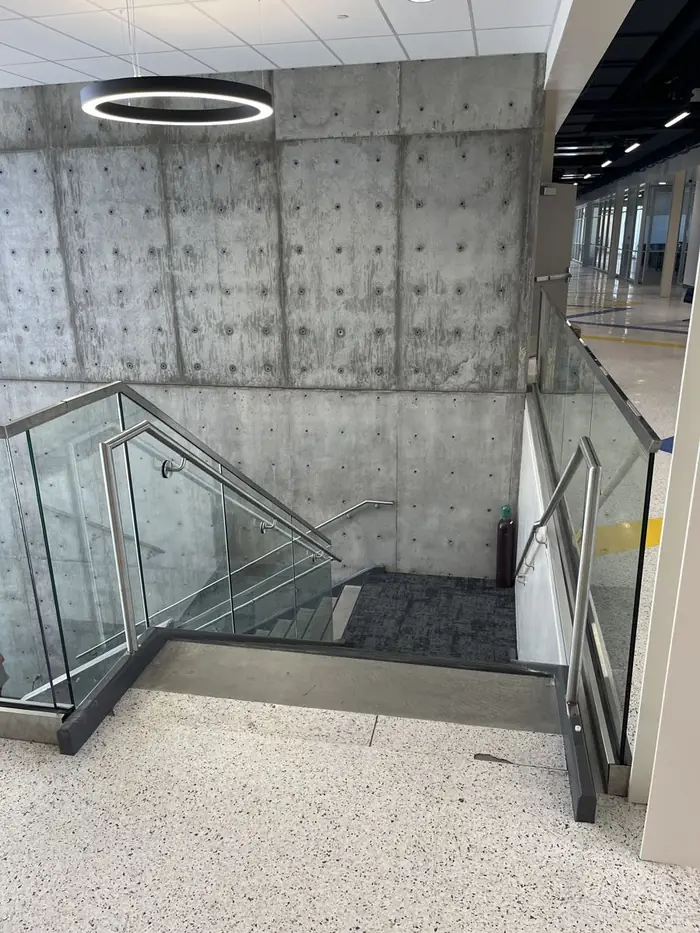

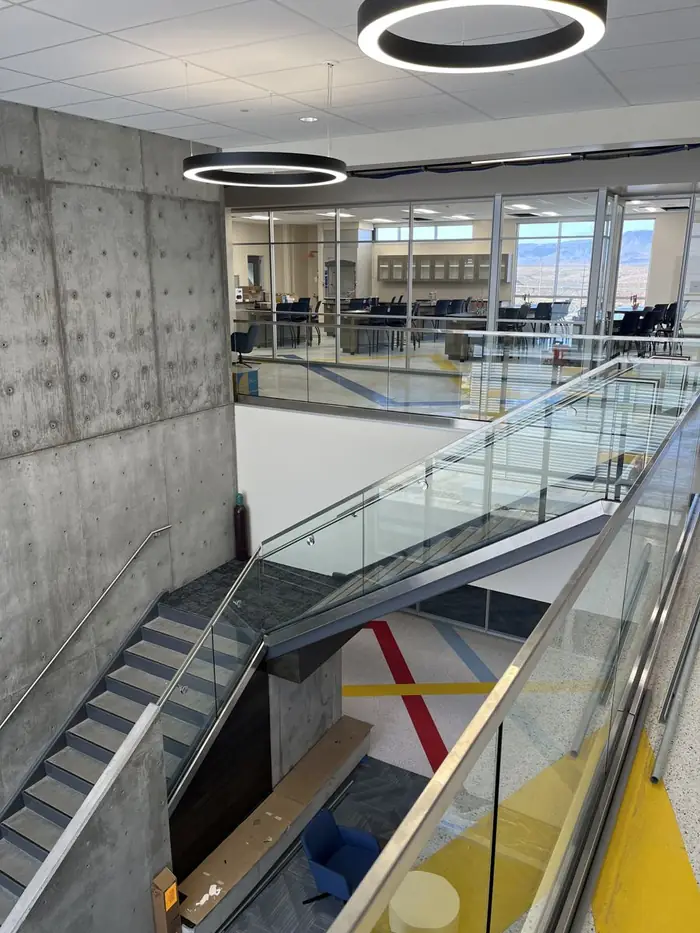

We had built glass rail before. We had not built this much of it at once, and volume changes the problem — a system that works over twenty feet has to hold its line over an entire upper floor, through corners, across stair transitions, and past every variation the concrete gives you.

What carried it was treating the shoe as the precision component and the glass as the thing that simply has to be allowed to fit. That is the lesson that transferred: by the time we were setting 743 feet of guardrail into post-tensioned balconies at St. Regis, roughly half of it glass infill, the approach was already proven here.

A career and technical education school, incidentally, is a building full of students training for the trades we hire from. That was not lost on anyone who worked on it.
